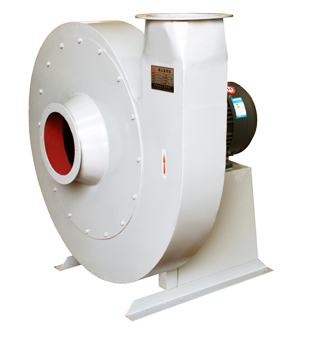

| T5-32 series medium-pressure centrifugal fans |
|
|
| |
| They are fans to be used specially for conveying materials. They have radial vanes and open impellers. Designed on the basis of 5-27 and 5-32 fans, they are new specialized products modified in performance, efficiency and raw materials. They are characterized by stable operation, high efficiency, resistance to wear, etc. Matching up green recovery project of state, they are applicable to recovery and transfer of various plastic PVC, foam particles, films, fragments, and to beverage machinery industries and so on as supporting facility. |
| |
|
Machine No.
|
Motor Power Kw
|
Rotation Speed r/min
|
Volume Flow m3/h
|
Pressure Pa
|
|
T5-32-3A
|
0.75
|
2830
|
378-1377
|
1558-930
|
|
T5-32-3.4A
|
1.1
|
2830
|
550-2000
|
2000-1200
|
|
T5-32-3.8A
|
1.5
|
2840
|
770-2800
|
2500-1500
|
|
T5-32-4A
|
2.2
|
2840
|
890-3420
|
2930-1710
|
|
T5-32-4.1A
|
3
|
2840
|
970-3680
|
3080-1820
|
|
T5-32-4.4A
|
4
|
2890
|
1200-4550
|
3550-2075
|
|
T5-32-5A
|
5.5
|
2840
|
1300-4800
|
5000-3500
|
|
T5-32-5.5A
|
7.5
|
2900
|
1500-4630
|
6500-4900
|
|
T5-32-5.6A
|
11
|
2900
|
1670-5753
|
6980-5260
|
|
T5-32-5.7A
|
15
|
2930
|
1940-6000
|
7730-5820
|
|
T5-32-5.8A
|
18.5
|
2930
|
2140-6620
|
8250-6210
|
|
T5-32-6.6A
|
22
|
2940
|
2350-7280
|
8786-6615
|
|
T5-32-6.9A
|
30
|
2950
|
2810-8732
|
9120-7450
|
|
T5-32-7.2A
|
37
|
2950
|
3372-10478
|
10224-8344
|
|
